Chlorine Gas Disinfection Recirculation

MAK Water’s Chlorine Gas Disinfection Recirculation (CGDR) Plants are designed to automatically maintain the correct amount of free chlorine in a potable water storage tank, in accordance with Australian Drinking Water Guidelines (ADWG).

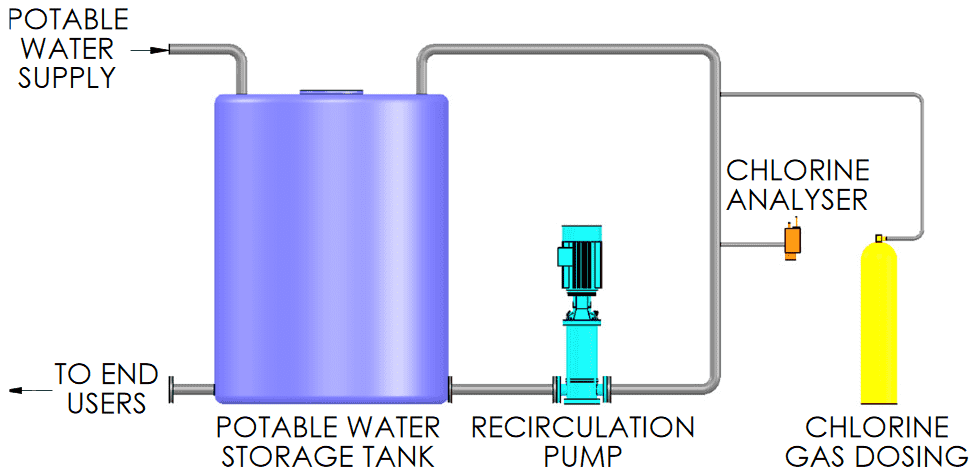

The standard treatment process includes a recirculation pump to turn over the contents of the potable water storage tank twice in a 24 hour period, an inline chlorine analyser which monitors residual free chlorine and a dosing system to automatically dose chlorine gas as required.

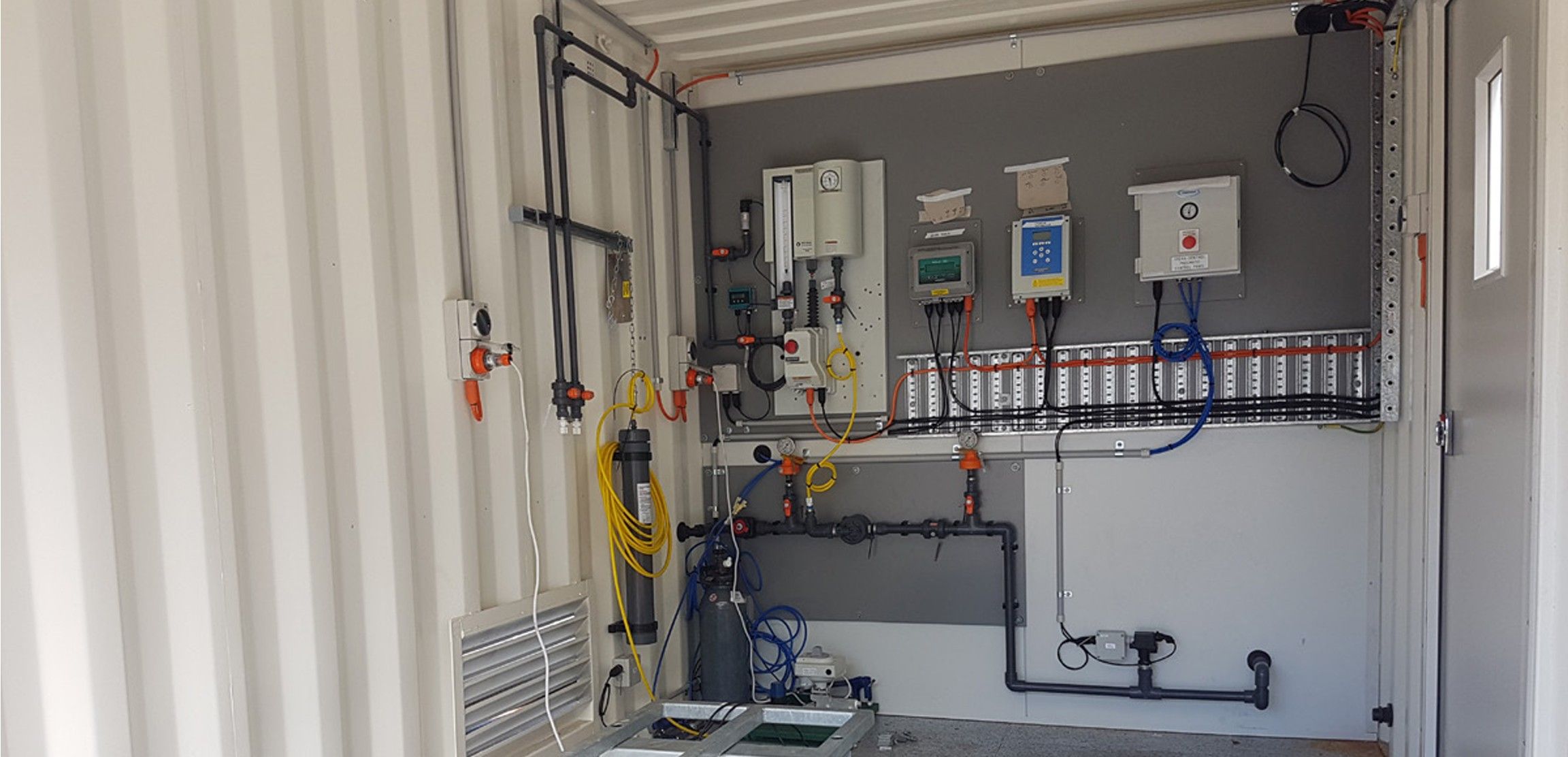

System components are sized to suit the potable water storage tank and daily water usage. Options are provided for duty standby recirculation and dosing systems to improve plant reliability. MAK Chlorine Gas Disinfection Plants are available as skid mounted, or be manufactured into a purpose built container, insulated and air conditioned.

Technical Specifications

Standard Specifications

Parameter	Units	CGSR-25	CGSR-100	CGSR-250	CGSR-500	CGSR-1000	CGSR-2500	CGSR-5000
Potable Water Storage Tank	m³	25	100	250	500	1000	2500	5000
Free Chlorine Residual (target)	mg/L	0.2 ~ 2 (as per Australian Drinking Water Guidelines ADWG)
Raw Water Temperature	°C	15 ~ 35
Ambient Design Temperature	°C	5 ~ 35 (15 ~ 30 for insulated containerised system)
Feed Water Inlet Pressure	kPa	> 15 (flooded suction from tank)
Recirculation Pump Flow Rate	m³/hr	2.08	8.33	20.83	41.66	83.33	208.33	416.66
Recirculation Pressure	kPa	100 ~ 200
Power Supply	-	AC 240V, 1 phase, 50Hz or AC 415 V, 3 Phase, 50 Hz
Power Consumption (approx.)	kW	1	1.5	2.5	3.5	6.0	16	47
Container Size	ft	20

✓ = Standard Supplyo = Optional Supply- = Not Applicable

Equipment	CGSR-25	CGSR-100	CGSR-250	CGSR-500	CGSR-1000	CGSR-2500	CGSR-5000
Skid Mounted Plant	✓	✓	✓	✓	✓	✓	✓
Recirculation Pump	✓	✓	✓	✓	✓	✓	✓
Chlorine Dosing System	✓	✓	✓	✓	✓	✓	✓
Amperometric Chlorine Analyser	✓	✓	✓	✓	✓	✓	✓
Space for uninstalled 70kg gas cylinder	✓	✓	✓	✓	✓	✓	✓
Alarm Signal Output for Client Interface	✓	✓	✓	✓	✓	✓	✓
PLC Control System with HMI	✓	✓	✓	✓	✓	✓	✓
Containerised System, c/w A/C & Lights	o	o	o	o	o	o	o
Container Non-slip Floor Coating	o	o	o	o	o	o	o
Container Insulation (walls & ceiling)	o	o	o	o	o	o	o
Duty Standby Recirculation Pumps	o	o	o	o	o	o	o
Duty Standby Dosing System	o	o	o	o	o	o	o
Safety Shower & Eyewash Station	o	o	o	o	o	o	o
Premium Instrumentation Package	o	o	o	o	o	o	o

Instrumentation	Standard Package	Premium Package
Pressure Gauge (recirculation pump discharge)	✓	✓
Pressure Switch (recirculation pump discharge)	✓	✓
Amperometric Chlorine Analyser (4-20mA)	✓	✓
Gas Cylinder Electronic Scale (with Bracket)	✓	✓
Chlorine Gas Leak Detector	-	✓
Automatic Shutdown on Leak Detection	-	✓
Pressure Transmitter (4-20 mA)	-	✓
Data Logger (residual chlorine)	-	✓
Remote Monitoring & Control Capabilities	-	✓

Disclaimer: We continuously update and improve our products and services, contact us for more detailed information or to confirm specifications. MAK Water takes no responsibility for any errors resulting from the use of information contained on this website.
