Home / Solutions / Sludge Handling / WATROMAT® Screw Press Dryer

WATROMAT® Screw Press Dryer

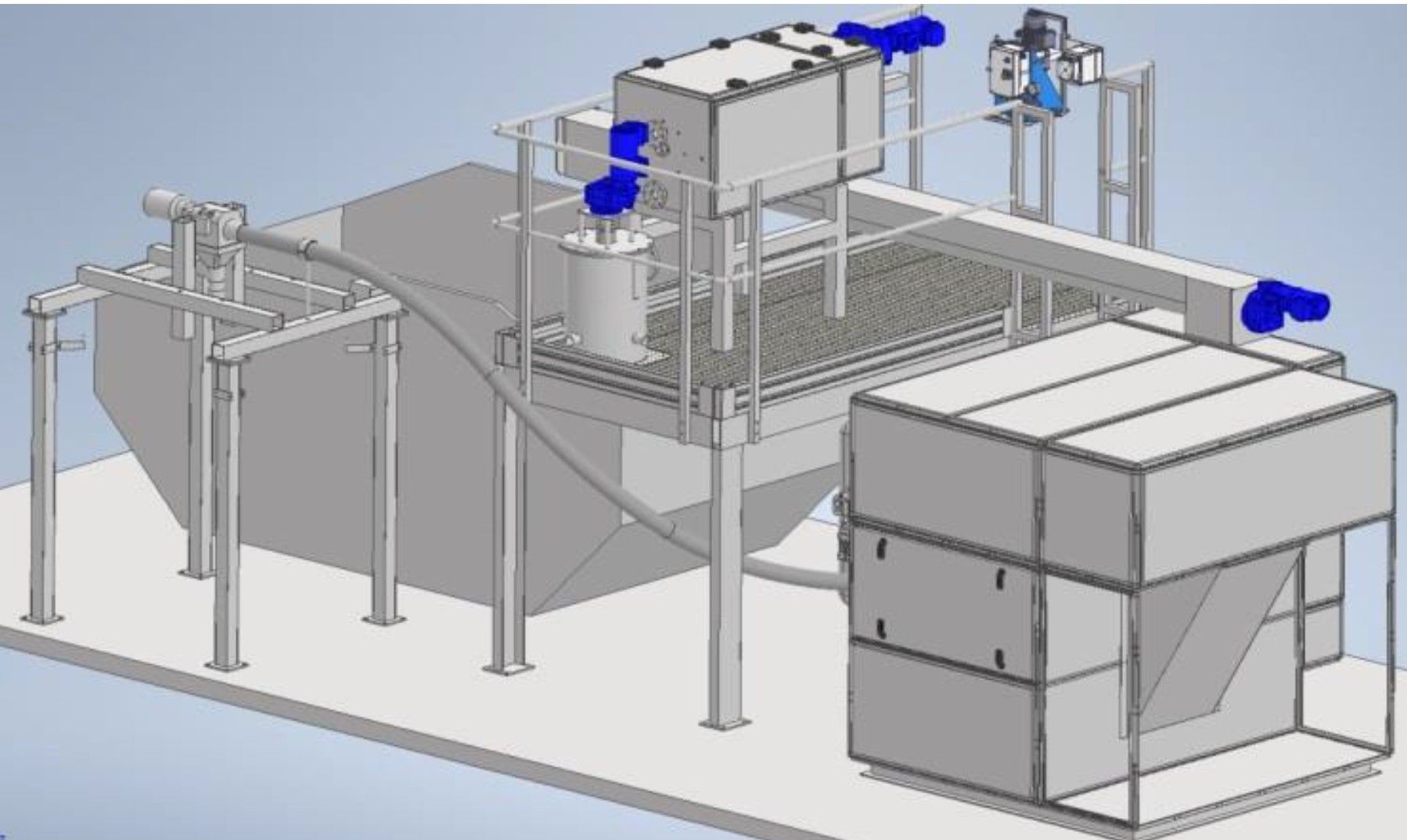

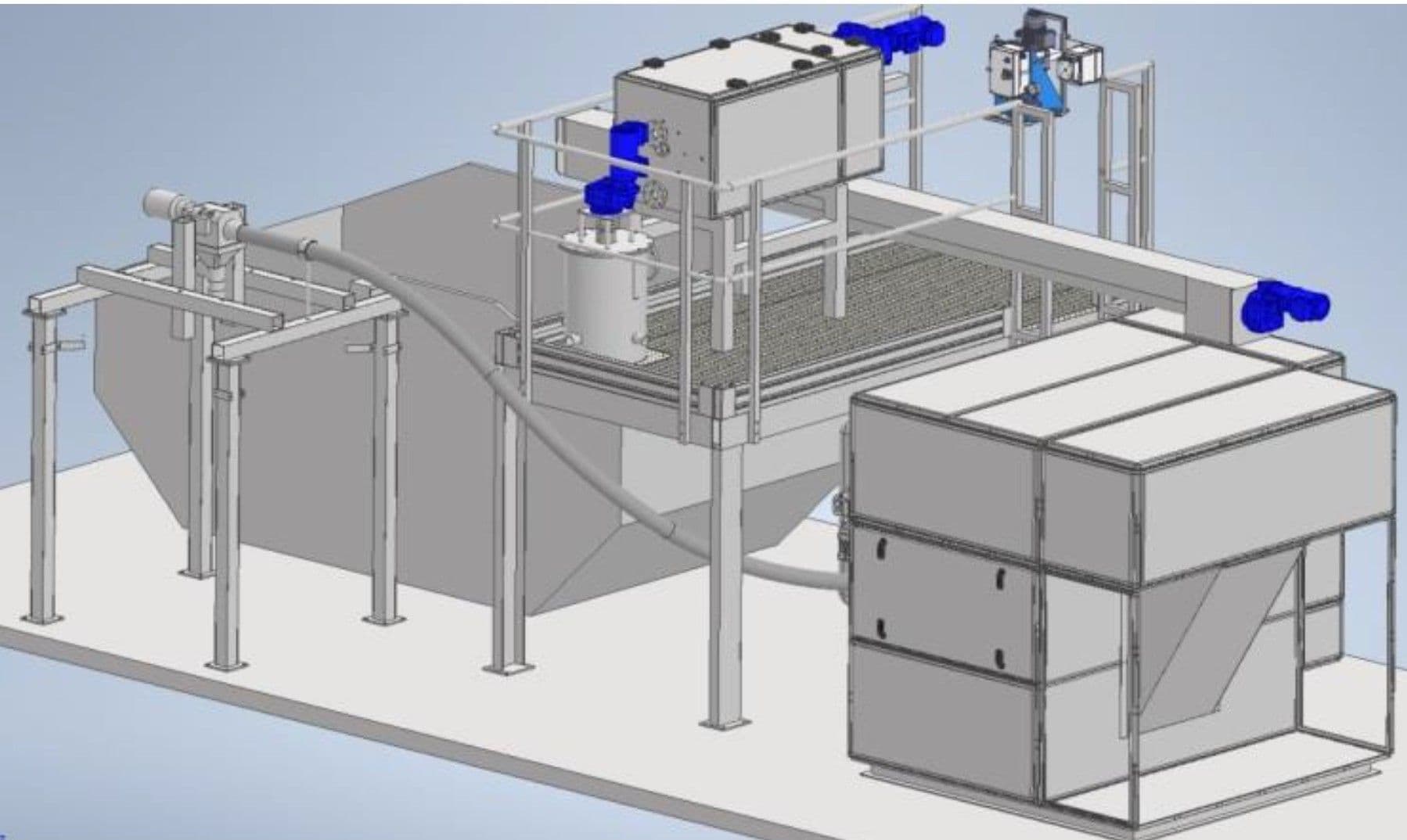

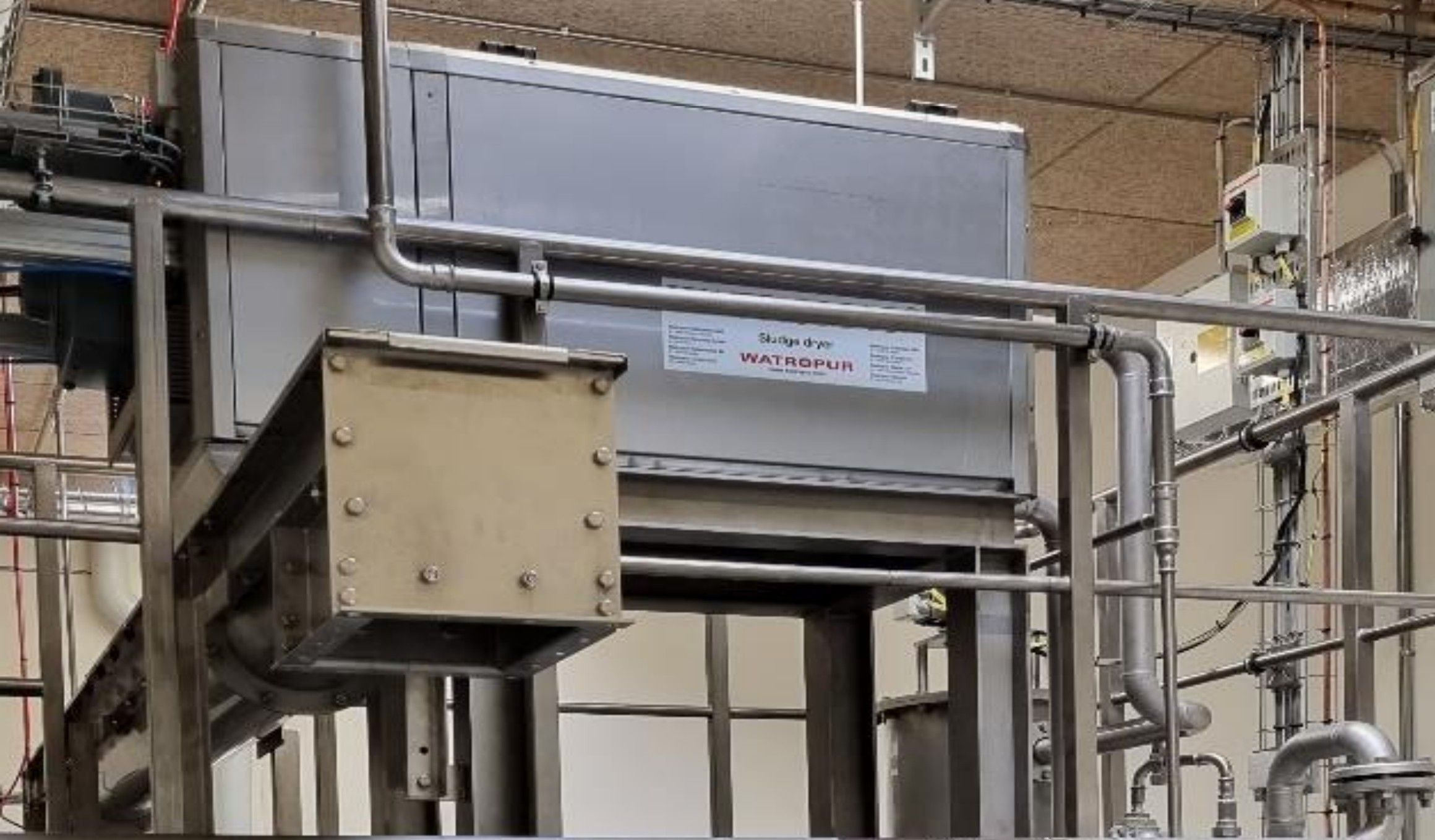

WATROMAT^®Screw press dryers combine dewatering and drying equipment. They consist of a sludge pump, polymer dosing unit, flocculation tank, screw press, screw conveyors, belt dryer and bagging point. WATROMAT^®screw press dryers dewater and dry sludge which can be filled into bags or silos. The dryers operate at low temperatures without emissions and with low maintenance.

Suitable applications include dairies, distilleries, oil refineries, pet food manufacturers, municipal sewage treatment plants, aquaculture and abattoirs.

Key Features

Handles 0.25 to 15 t/day solids
Requires a min. of 2 % dry substance
Consumes 0.3 kWh per kg of water removed
Reaches 90 % dry substance

Technical Specifications

Standard Specifications

Model	WSP 500-800B	WSP 500-1500B	WSP 1500-3000B	WSP 1500-4500B	WSP 1500-6000B	WSP 2500-9000B	WSP 5000-12000B	WSP 5000-15000B	WSP 5000-18000B	WSP 8000-24000B
Throughput dry matter
t/day	0.25	0.5	0.8	1.2	1.5	2.5	3	4	5	8
Effluent flow rate
m³/day	12	25	40	60	75	125	150	216	240	400
Electrical power
kW	16	28	53	79	104	156	214	264	316	420
Dimensions in meter
Length	11.5	11.5	2 x 11.5	2 x 11.5	2 x 11.5	2 x 11.5	3 x 11.5	3 x 11.5	3 x 11.5	4 x 11.5
Width	2	2	2	2	2	2	2	2	2	2
Height	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2

More actions

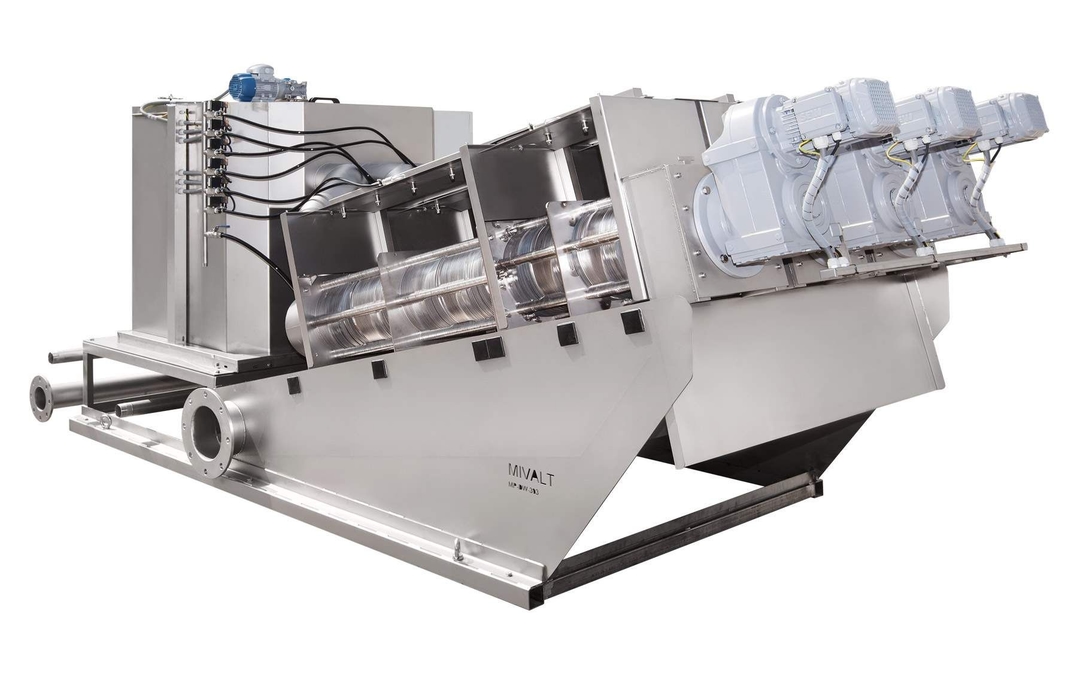

Dewatering Screw Press
